Description

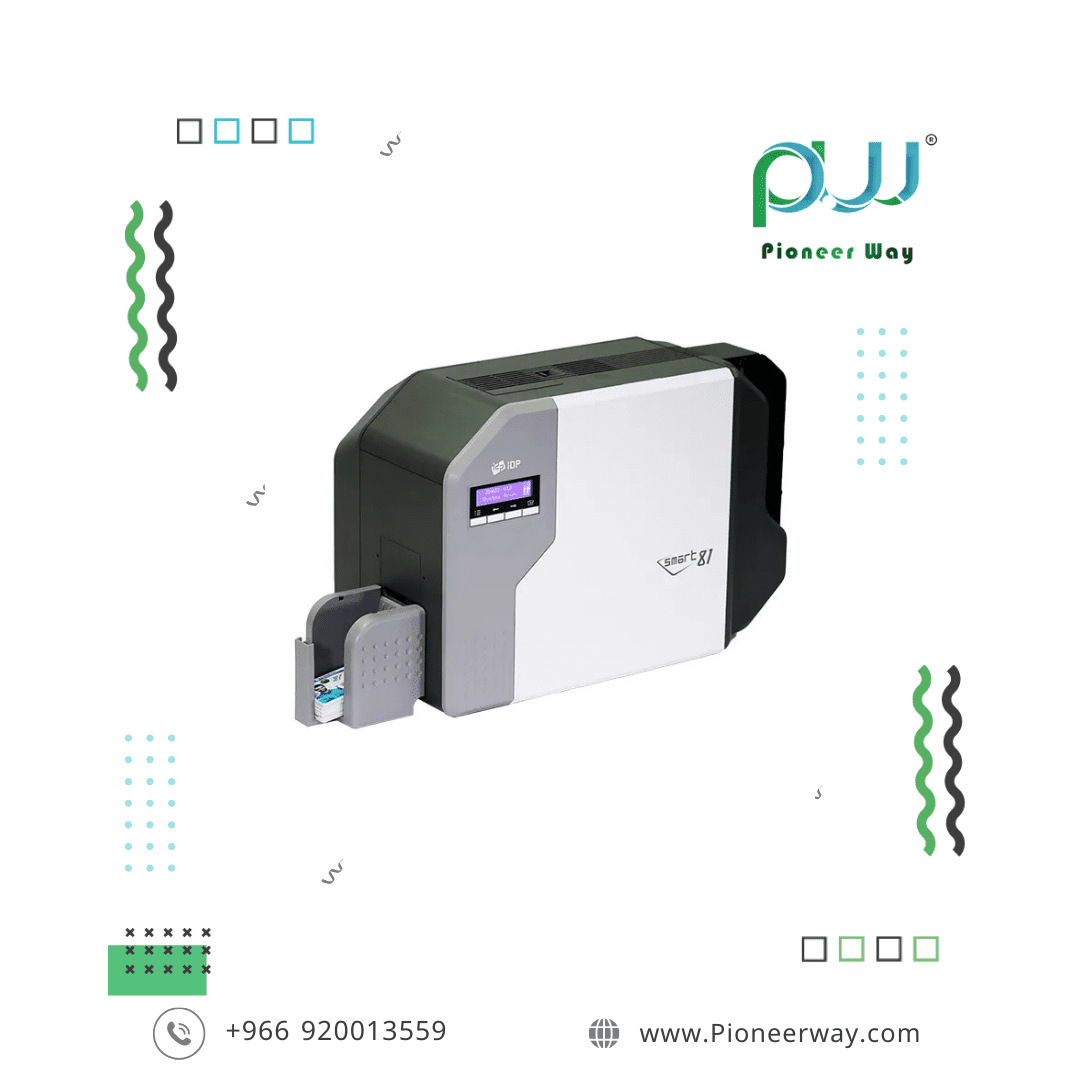

SMART-81D Specifications
Printing
Print Mode
Dual-Sided
Print Type
Dye-Sublimation / Resin Thermal Retransfer
Print Area
Over-the-Edge
Resolution
300 dpi / 600 dpi option
Card
Card Feeding
Automatic
Card Size
ISO CR80
Card Thickness
0.76mm (30mil) ~ 1.6mm (64mil)
Card Type
PVC, PC, PET, Composite PVC
Print Speed
YMCK
Max. 25 sec./card (144 cards/hour)
YMCKK
Max. 43 sec./card (84 cards/hour)
Capacity
Input Card Hopper
200 Cards
Output Card Hopper
100 Cards
Error Card Bin
25 Cards
System
Interface
2 Line Graphic LCD Indicator / 4 Buttons
Supported Platforms
Microsoft Windows 7/ 8 /10 /11, Mac OS, Linux
Communication
USB, Ethernet
Power Supply
100-240V~ 50/60Hz
Power Consumption
2.5A
Temperature
Humidity
35~70%
Security
Station Itself
Kensington Lock
Dimensions
Milimeter
460(W) x 224(D) x 310(H)
Inch
18.1(W) x 8.8(D) x 12.2(H)
Weight
Kg / Lbs
11.4 / 25.13
Encoding Option
Magnetic
ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo)
Contact
ISO 7816 (ID-1)
Contactless
ISO 14443 (Type A/ B), ISO 18092(NFC), MIFARE, DESFIRE
Options
WiFi
IEEE 802.11 a/ b/ g/ n
Security
Physical & Electronic Locking System
