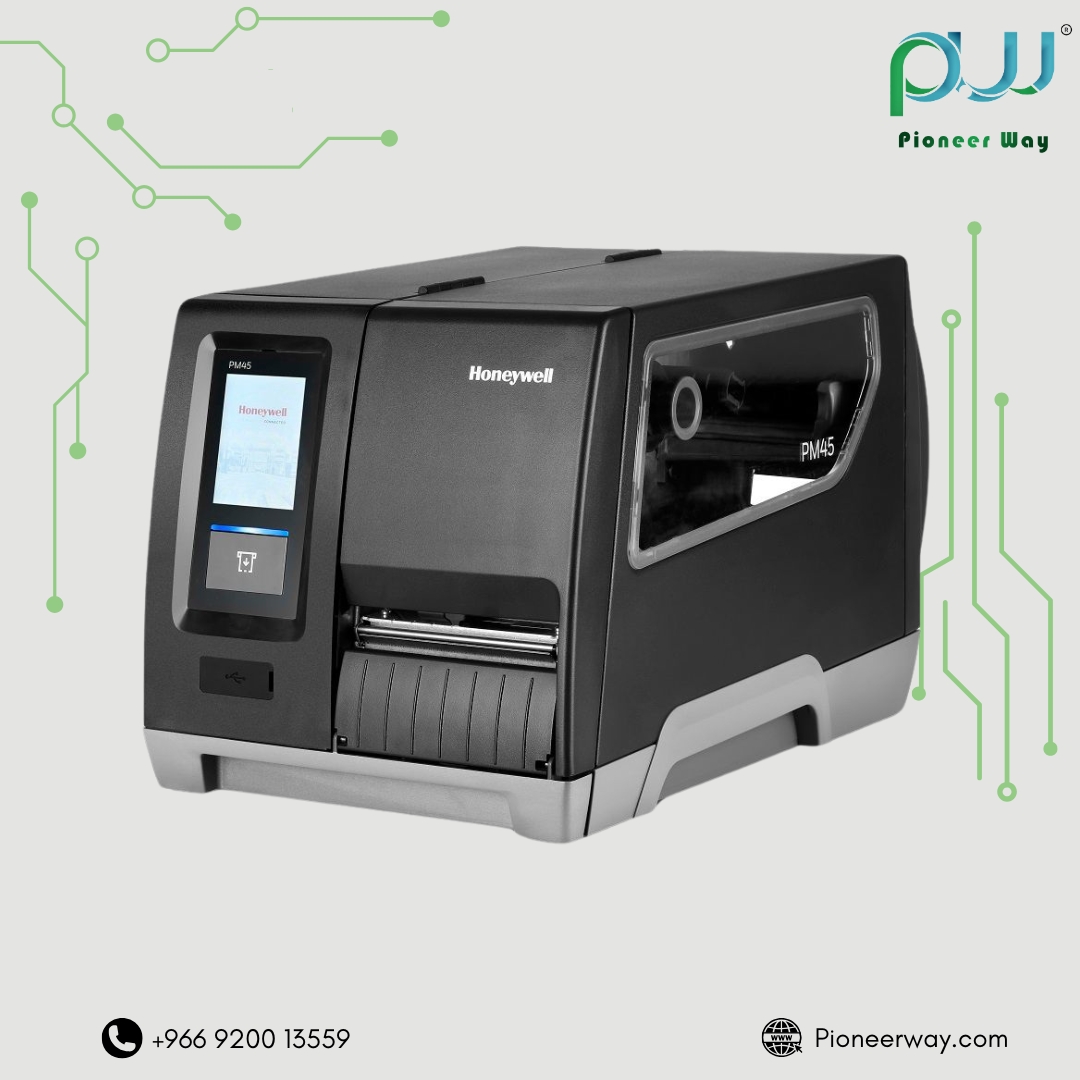

October 27, 2024Honeywell PM45 Barcode Label Printer
The Honeywell PM45 industrial printer is designed to tackle increasing challenges relating to production flexiblity, cost control, and inventory turnover. The PM45 provides businesses with the versatility and precision needed for high-volume printing. With enhanced WWAN connectivity, the PM45 enables deployment with minimal limitation from site network topology. The PM45 simplifies last minute changes with the embedded Honeywell Smart Parse software that allows for quick position changes, sizing of objects and barcodes, and font type on labels, without requiring changes to a backend system or any additonal programming.
FEATURES
- Compatible Software
- Nicelabel
- BarTender
- Operational Intelligence
- Teklynx Labelview
- Features
- Broad connectivity options
- Device management and track & trace functionality
- Accurate & reliable high speed printing
- Compatible Drivers
- CUPS Driver for Linux
- InterDriver Windows
- Certified Device Types for SAP
- Application
- Food and beverage
- Healthcare
- Warehouse and distribution center
- Manufacturing
DIMENSIONS
- Overall Dimensions
- PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
- PM45c with Mega Door L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
- PM45: L x H x W: 483 mm x 295mm x 284 mmNEWLINE(19.0 in x 11.11.6 in x 11.2 in)
SOFTWARE & FIRMWARE
- 2D Barcodes
- All major 2D barcodes
- Linear Barcodes
- All major 1D barcodes
- Printer Command Language
- Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL), ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
- Image File Format
- GIF
- BMP
- PNG
- PCX
PRINTING SPECIFICATIONS
- Print Method
- Direct Thermal
- Thermal Transfer
MEDIA
- Printer Media Type
- Label
- RFID
- Tag
- Linered
MEMORY & DATA
- Memory
- 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22)
HARDWARE
- Printer Connection Interface
- Applicator Interface
- USB 2.0 Host (x2 PM45, x1 PM45C)
- Ethernet 10/100/1000 Mbps
- RS-232
- Parallel Interface (IEEE 1284)
- Industrial interface
- RFID
ELECTRICAL
- Operating voltage
- AC Voltage: 100 to 240V AC, 50 to 60 Hz
ENVIRONMENTAL
- Operating Humidity
- 20 to 85% non-condensing
- Operating Temperature
- +5°C to +40°C (+41°F to +104°F)
SERVICE TERMS
- Warranty Duration
- 2 year Factory Warranty
NETWORK
- RFID Specifications
- RFID
