Datalogic Barcode Scanner GBT4130 1D Bluetooth

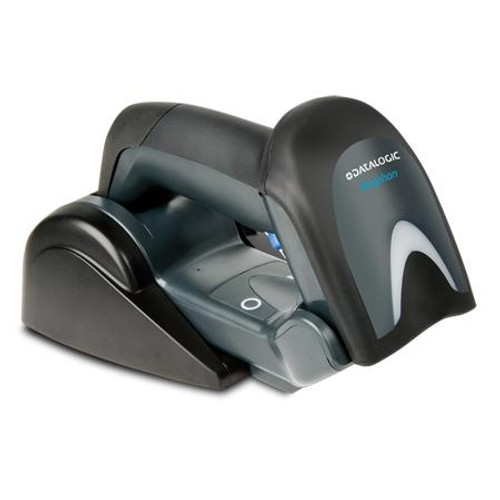

Datalogic GBT4130-BK-BTK1 Overview
The Gryphon series represents the premium line of Datalogic Scanning’s general purpose handheld data collection products and offers the richest feature set among the general purpose products. Featuring Bluetooth Wireless Technology, the Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device.
Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes
Postal Codes:
- China Post
Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
325 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
- 2.3″ – 7″@5mil
- 1.4″ – 11.7″@7.5mil
- 0.8″ – 17.7″@10mil
- 1.2″ – 23.4″@13mil
- 1.2″ – 31.2″@20mil
Scan Pattern:
Linear
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Color:
Black
Height:
7.1″
Width:
2.8″
Depth:
3.9″
Weight (Approximate):
7.94 oz
Miscellaneous
Package Contents:
- Gryphon 4130 Handheld Bar Code Reader
- Base/Charger
- Power Supply
- Cable
Additional Information:
USB Cable separate
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- China RoHS
Warranty
Limited Warranty:
2 Year
